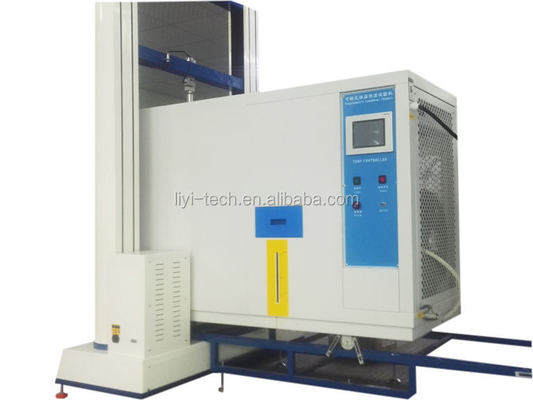

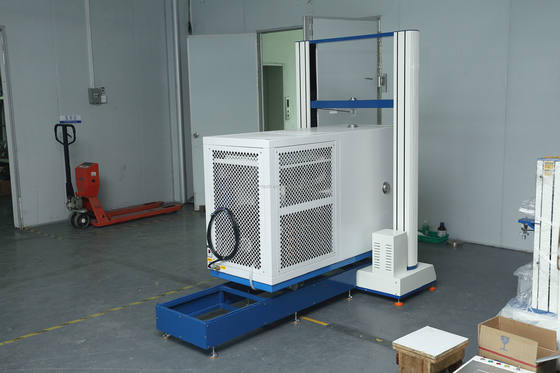

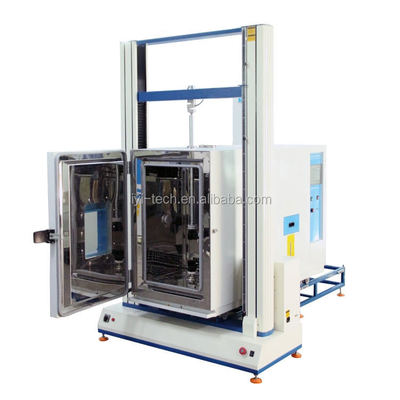

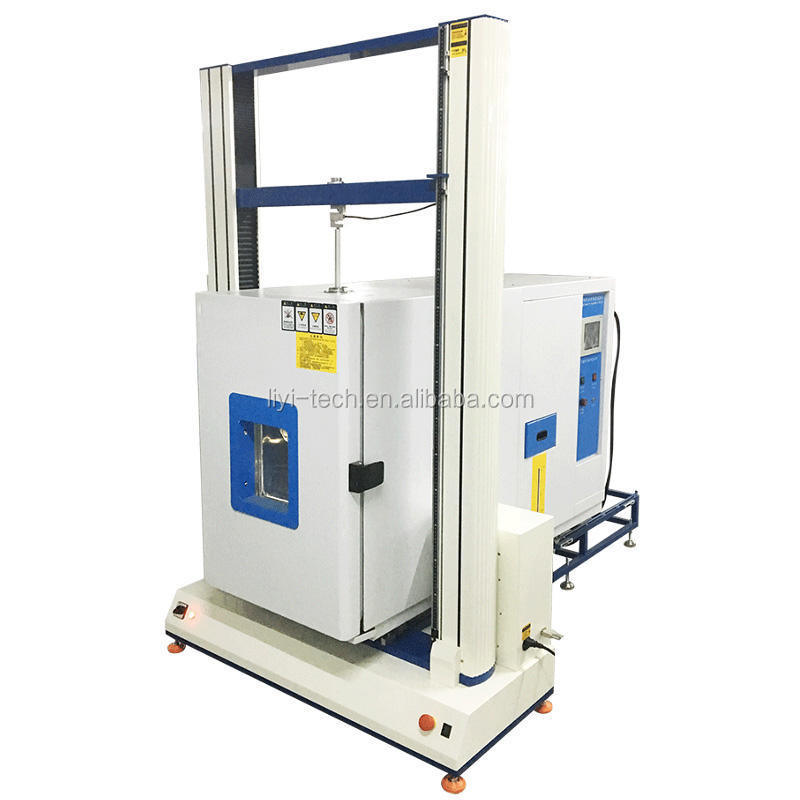

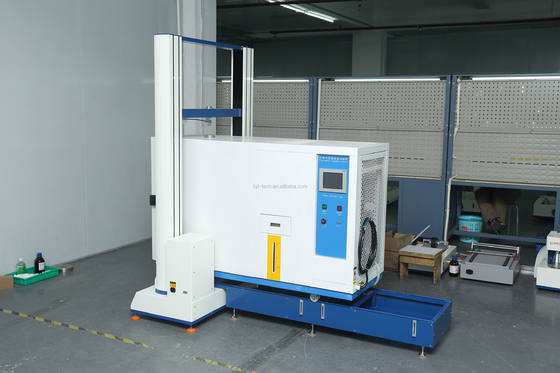

Liyi High and Low Temperature Tensile Testing Machine UTM Universal Test Machine With Temperature Chamber
Product Attributes
| Attribute |
Value |
| Test force accuracy |
±1% |
| Displacement resolution |
0.01mm |
| Deformation test accuracy |
±0.5% |
| Max drawing space |
800mm |
| Max compressing space |
700mm |
| Bending test branch space |
450 mm |
| Complete weight |
3000kg |
| Certificate |
CE ISO |
| Warranty |
12 Months |
| Customized support |
OEM, ODM |
| Power |
Electronic |
Product Description
This machine combines high-low temperature testing with peel strength testing capabilities. It eliminates errors caused by environmental changes during testing processes. With different fixtures, it can test 180° and 90° peeling strength, separating force, and other parameters for adhesive materials in high-low temperature environments. The machine can be configured as a programmable temperature and humidity tester based on requirements.
Key Features
- Constructed with paint-coated aluminum blanking plate for durability
- High-accuracy, low-resistance ball screw system with zero clearance for improved loading efficiency and structural rigidity
- Panasonic servo motor ensures high efficiency, steady transmission, and low noise with speed accuracy controlled within 2%
- Business computer control with specialized testing software for comprehensive parameter control, data collection, analysis, and reporting
- Stable performance with high accuracy and user-friendly operation
- Double insulated glass for clear test observation and stainless steel frame for corrosion resistance
Design Standards
UN38.3, SJ/T11169-1998, SJ/T11170-1998, UL1642-1995, UL2054-1997, QC/T 743-2006, QC/742-2006, QC/T 744-2006, GB/T18287-2000, GB 8897.4-2002, IEC60086-4-2000 and more.
Technical Specifications
| Capacity |
2,5,10,20,50,100,200,500,1000kg |
| Choosing capacity |
3 to 10 times of specimen damage (g,kg,N,KN,LB) |
| Resolution |
1/2500,000 |
| Accuracy |
≤0.5% |
| Testing speed |
1~500mm/min |
| Stroke |
400,500,600mm (Customizable height) |
| Test width |
40cm (Customizable) |
| Test space |
40×40×70cm (L×W×H) |
| Motor |
Panasonic servo motor |
| Drive system |
High-precision ball screw |
Temperature Control System
| Temperature range |
-40℃~150℃ |
| Temperature method |
Computer P.I.D. automatic control |
| Humidity range |
20%RH~98%RH |
| Control stability |
±2.5%RH, ±1℃ |
| Distribution accuracy |
±3%RH, ±1℃ |
Product Images
Our Company
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we produce simulated environmental testers and material testing equipment for various industries.
Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China operations. We serve customers in over 150 countries and regions, committed to helping clients establish quality testing laboratories.
Packing & Delivery
Our Service
We provide consultative selling service throughout the entire business process:
- Inquiry Process: Discuss testing requirements, suggest suitable products, and provide quotations
- Customization Process: Create drawings and reference photos for customized requirements
- Order Process: Accept various delivery terms (FOB, CFR, CIF, etc.) and payment methods
- Production & Delivery: Provide production updates, factory calibration, and timely shipping
- Installation & Support: Offer installation guidance and comprehensive after-sales service
Frequently Asked Questions
Q1: Are you manufacturer?
A: Yes, we are the manufacturer. You're welcome to visit our factory.
Q2: Which languages can your team support?
A: Our team supports English, Cantonese, and Chinese.
Q3: How to choose the most suitable products?
A: Our professional team will provide recommendations based on your testing requirements.
Q4: What's the delivery term?
A: Standard delivery time is 10-20 working days after deposit. Urgent orders can be accommodated.
Q5: Do you accept customization service?
A: Yes, we offer both standard and fully customized machines.
